WaterShed C++ Implementation

Since I heard of it, I have always wanted to manually implement the WaterShed Algorithm and now I got the chance.

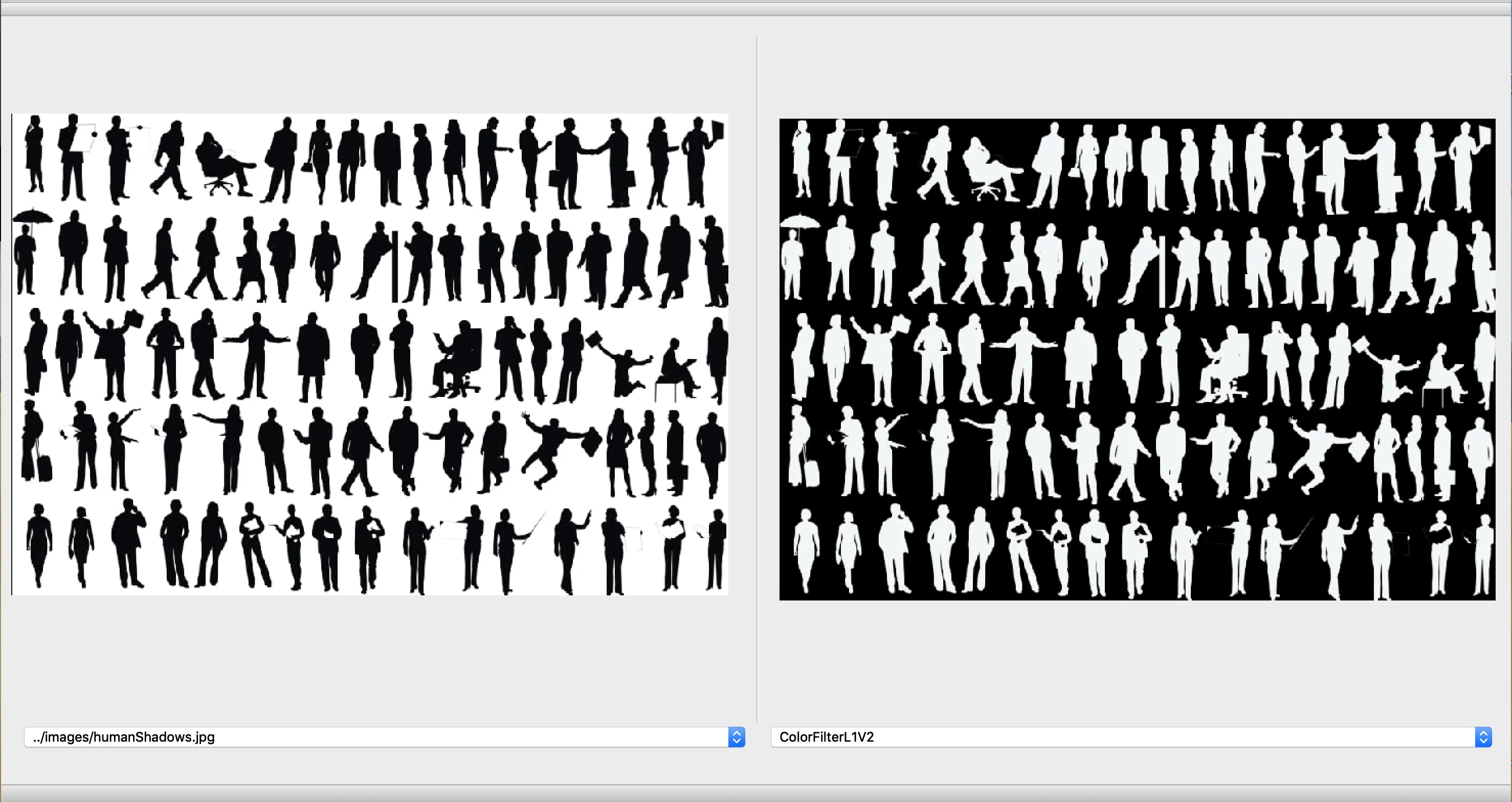

Because I wanted to create a UI and a skeleton that would allow me to easily test and implement multiple filters, I chose QT as a design framework and came up with the following user interface:

Screenshot

Just need to select the picture (all taken from a predetermined folder), select the filter you want and voila.

The interface that every filter should respect is the following:

class FilterInterface {
private:
    string name;

public:
    virtual Mat processImage(Mat image) = 0;

    const string &getName() const {
        return name;
    }

    FilterInterface(const string &name) : name(name) {}
};

Now, back to the algorithm…

What is Watershed?

Watershed is a transformation on grayscale images. The aim of this technique is to segment the image. It works by treating the image as a topographic map (height map), based on the intensity of the pixels, and starts to fill some lower regions with water until two separate regions of water (lakes) merge; at exactly those coordinates, there is placed a segmentation wall.

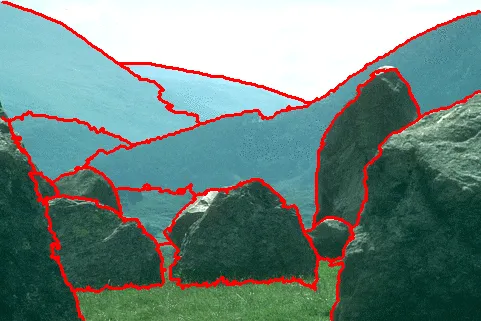

Watershed Example 1 Watershed Example 2

There are multiple steps that compose it:

  1. Make the image grayscale
  2. Apply a threshold
  3. Invert the pixels
  4. Erode foreground
  5. Apply distance transform
  6. Compute the actual watershed algorithm

Let’s take them one by one.

Making the image grayscale

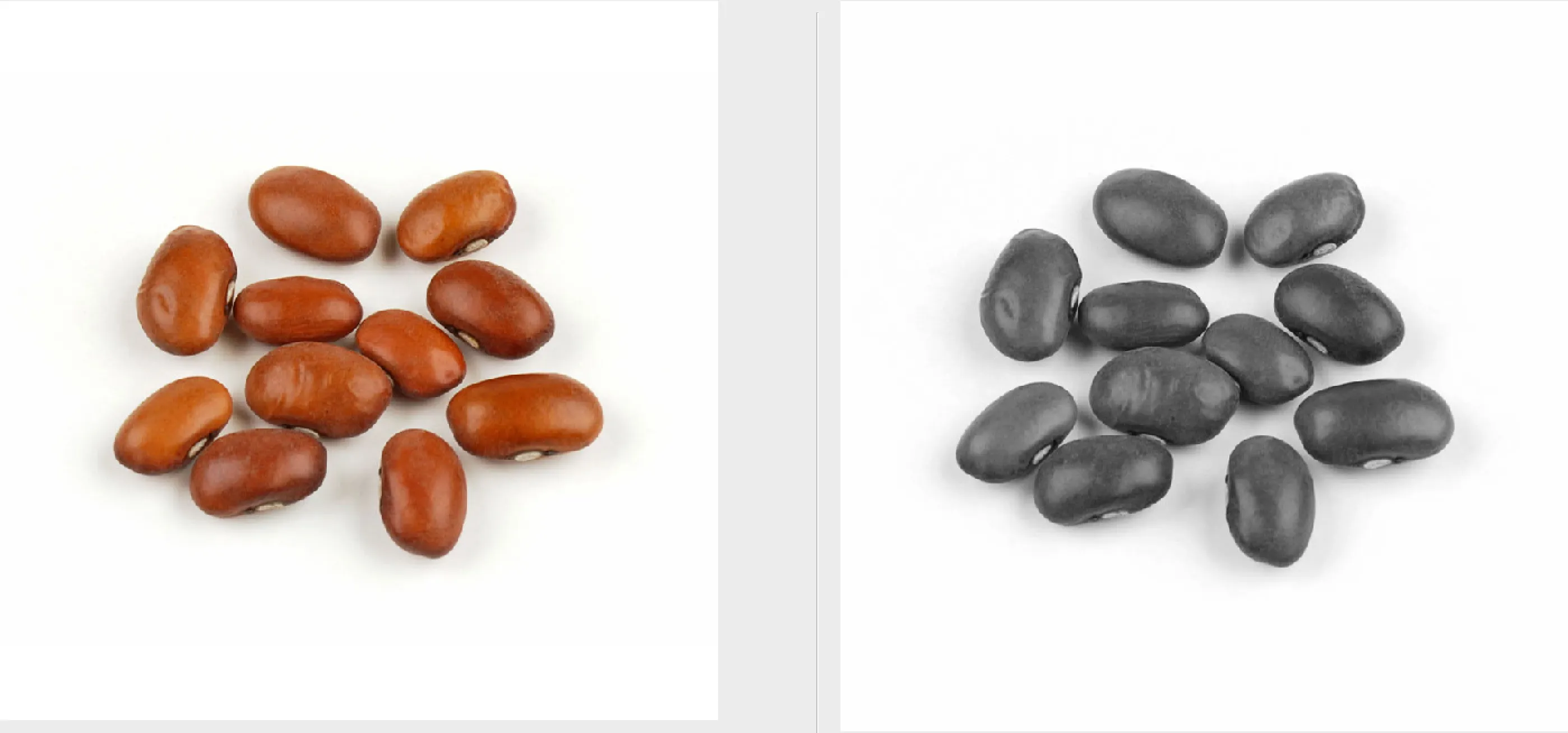

Screenshot

Since I wanted to implement as much of the algorithm by myself, I found that in order to convert a color image to grayscale I can use this formula: 0.21 R + 0.72 G + 0.07 B. (approach being called the Luminosity Method).

So I just need to iterate through every pixel and compute the gray value.

Mat makeImageGrayScale(Mat image) {
    Mat grayScale(image.rows, image.cols, CV_8UC1, Scalar(70));

    for(int i = 0; i < image.rows; i++) {

        for(int j = 0; j < image.cols; j++) {
            double gray = 0.21 * image.at<cv::Vec3b>(i,j)[0] +
                          0.72 * image.at<cv::Vec3b>(i,j)[1] +
                          0.07 * image.at<cv::Vec3b>(i,j)[2];
            grayScale.at<uchar>(i,j) = (uchar) gray;
        }
    }

    return grayScale;
}

There are two other choices:

Lightness Method -> (max(R, G, B) + min(R, G, B)) / 2
Average Method -> (R + G + B) / 3.

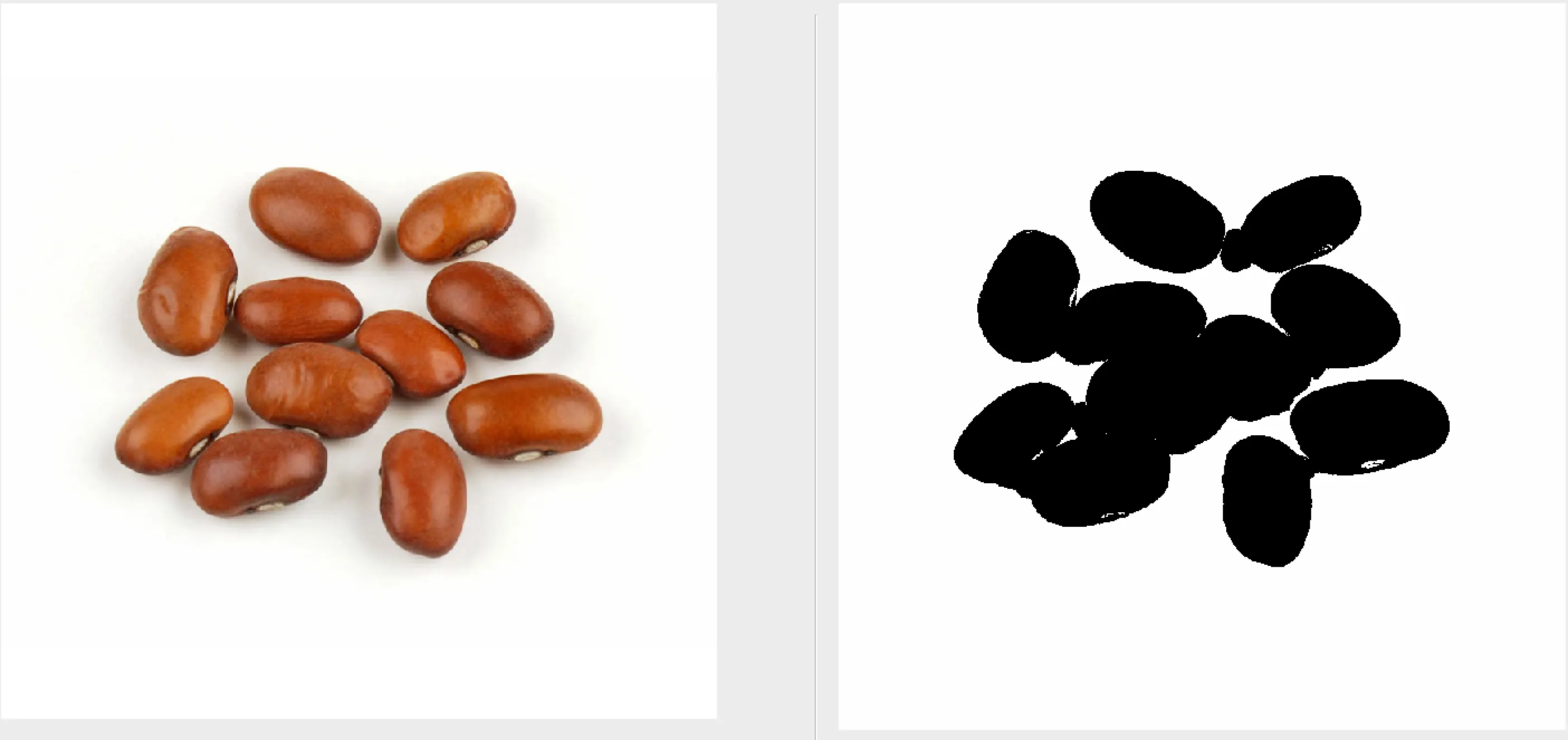

Applying a threshold

Screenshot

At this step, we are reducing our grayscale image to a binary image.

In order to be able to see the resulting image, I am mapping 1 to 255 and keeping 0 unmodified.

The biggest problem at this step is to choose the level of brightness that will decide if a pixel will turn into 0 or 1.

We could just try something like this:

int threshold = 100;
if(pixelValue > threshold) {
    pixelValue = 1;
} else {
    pixelValue = 0;
}

But each image will require a specific threshold so that the important pixels would not be lost. The solution to this is to use Otsu’s Binarization that automatically finds a more suitable value.

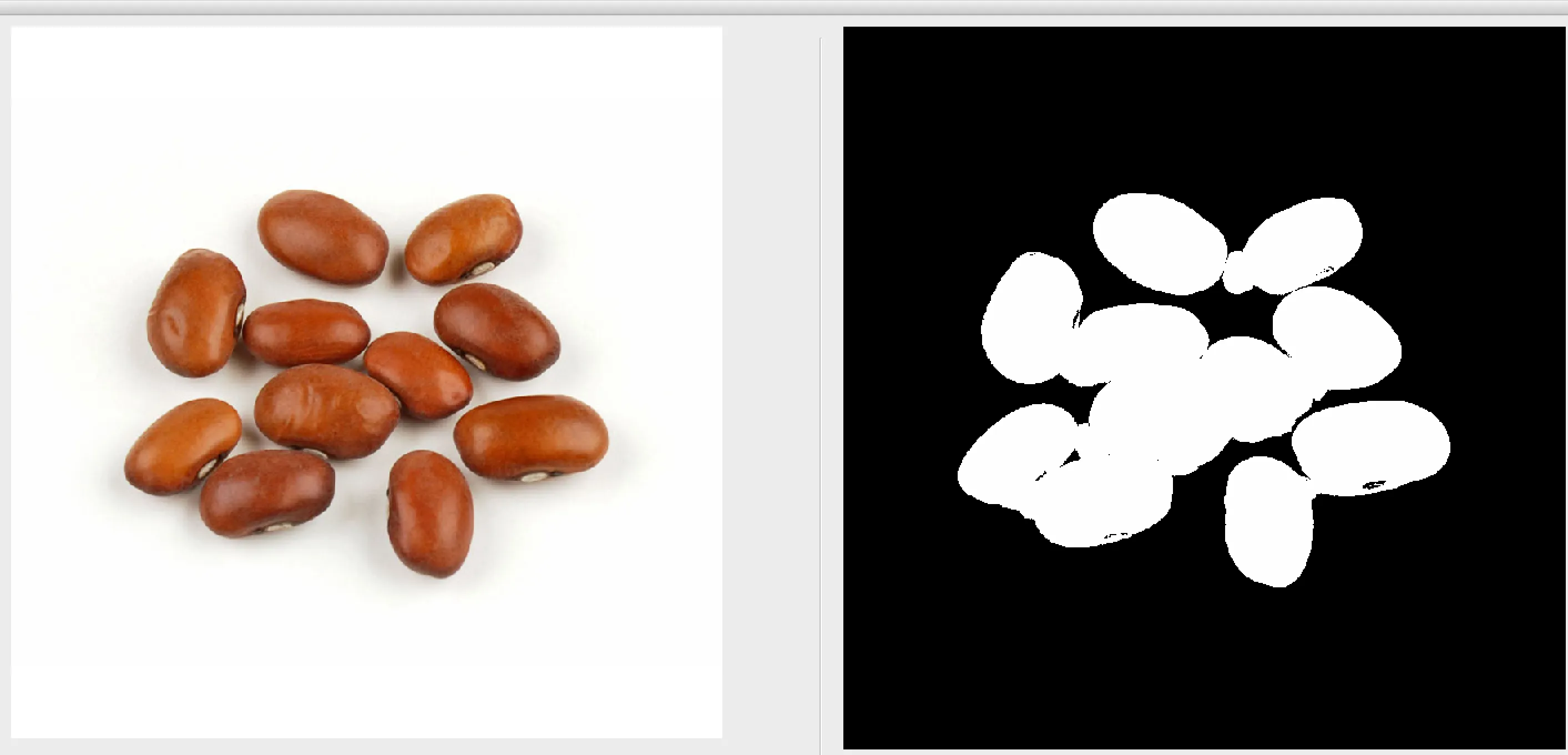

Inverting the pixels

Screenshot

We want the white pixels (255) to represent the foreground, not background, so we just switch them.

Mat inverseImage(Mat image) {
    for(int i = 0; i < image.rows; i++) {

        for(int j = 0; j < image.cols; j++) {
            if( (int) image.at<uchar>(i,j) == ZERO ) {
                image.at<uchar>(i,j) = ONE;
            } else {
                image.at<uchar>(i,j) = ZERO;
            }
        }
    }

    return image;
}

Erosion

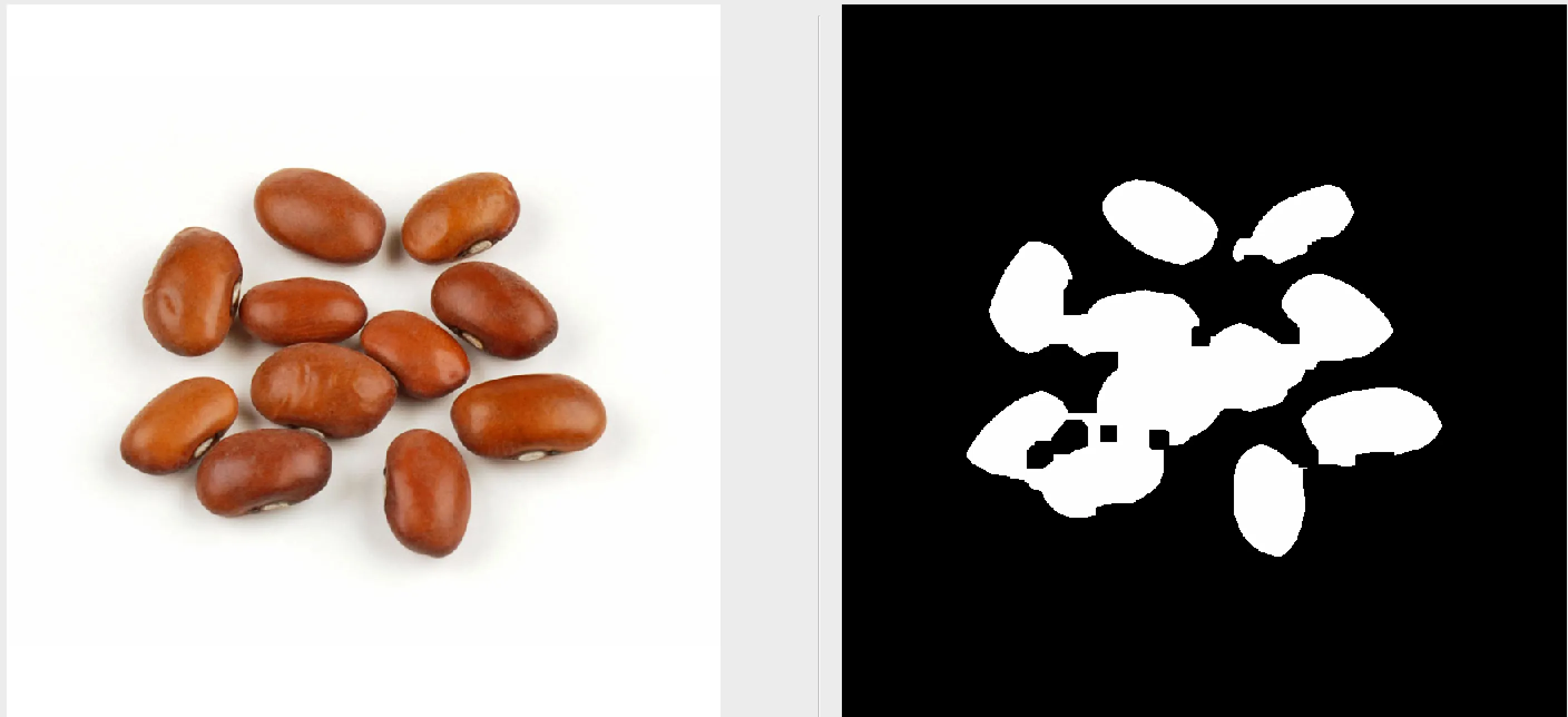

Screenshot

The difference is subtle; basically, we want to erode the foreground, so that we have more chances to separate the foreground objects.

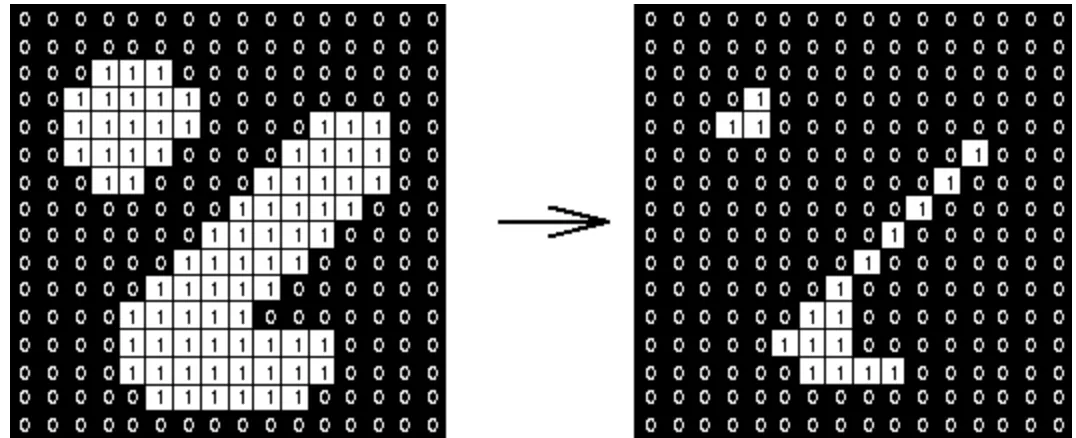

Erosion Example

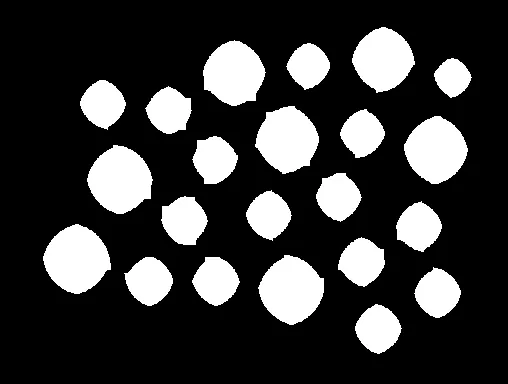

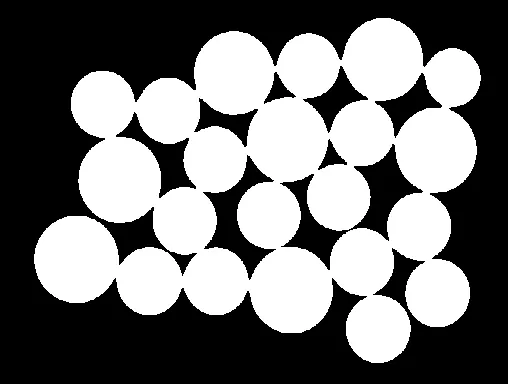

Erosion Example 1 Erosion Example 2

A complete explanation on how erosion works can be found here: https://homepages.inf.ed.ac.uk/rbf/HIPR2/erode.htm

vector<vector<bool>> shouldBeZeroImage(image.rows, vector<bool>(image.cols, false));
for (int i = n / 2; i < image.rows - n / 2; i++) {
  for (int j = m / 2; j < image.cols - m / 2; j++) {

    // Loop the kernel
    if ((int)image.at<uchar>(i, j) == ONE) {
      bool shouldBeZero = false;
      for (int crtX = i - n / 2, x = 0; crtX <= i + n / 2; crtX++, x++) {
        for (int crtY = j - m / 2, y = 0; crtY <= j + m / 2; crtY++, y++) {
          if ((int)image.at<uchar>(crtX, crtY) == ZERO && kernel[x][y] == 1) {
            shouldBeZero = true;
            break;
          }
        }
      }

      if (shouldBeZero) {
        shouldBeZeroImage[i][j] = true;
      }
    }
  }
}

Distance transform

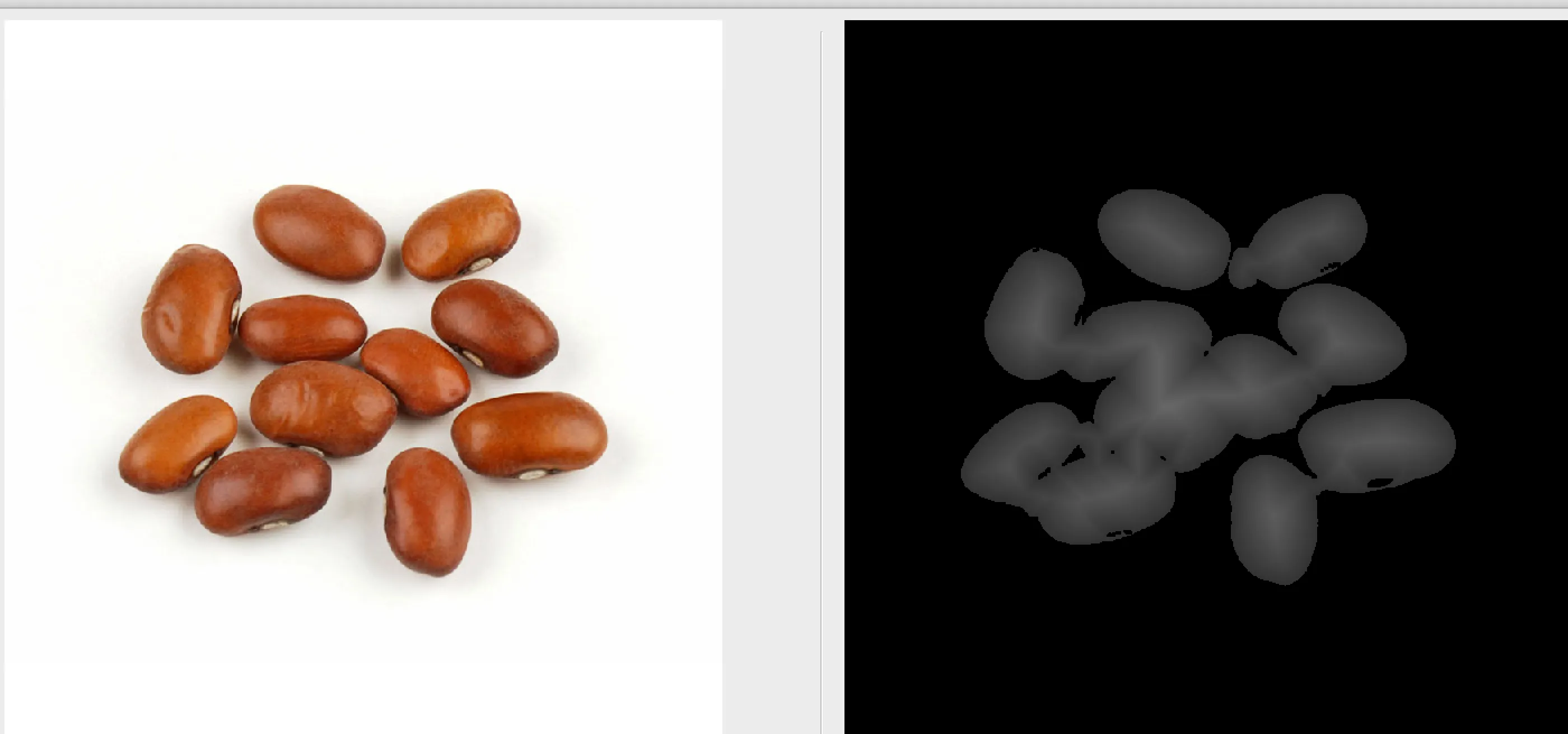

Screenshot

Until now, we have a binary image; now, we want to transform it into a height map so we can apply the actual watershed algorithm. Distance transform being one of the most straightforward ways to do it.

Basically, a foreground pixel is more intense if it is further away from a background pixel. There are multiple ways to do it; I have used a pathfinding algorithm to compute this distance.

while (!qx.empty()) {
  int crtX = qx.front();
  qx.pop();
  int crtY = qy.front();
  qy.pop();

  bool isBigger = true;
  for (int h = 0; h < 8; h++) {
    int nextX = crtX + dx[h];
    int nextY = crtY + dy[h];

    if (nextX < 0 || nextY < 0 || nextX >= image.rows || nextY >= image.cols || (int)image.at<uchar>(nextX, nextY) == ZERO)
      continue;
    }

    if ((int)image.at<uchar>(crtX, crtY) <= (int)image.at<uchar>(nextX, nextY)) {
      isBigger = false;
    }

    if ((int)image.at<uchar>(crtX, crtY) + STEP < (int)image.at<uchar>(nextX, nextY)) {
      visited[nextX][nextY] = true;
      image.at<uchar>(nextX, nextY) = (uchar)min((image.at<uchar>(crtX, crtY) + STEP), 254);
      qx.push(nextX);
      qy.push(nextY);
    }
  }

  if (isBigger) {
    markers.push_back(Point(crtX, crtY));
    markerImage.at<Vec3b>(crtX, crtY) = {0, 255, 0};
  }
}

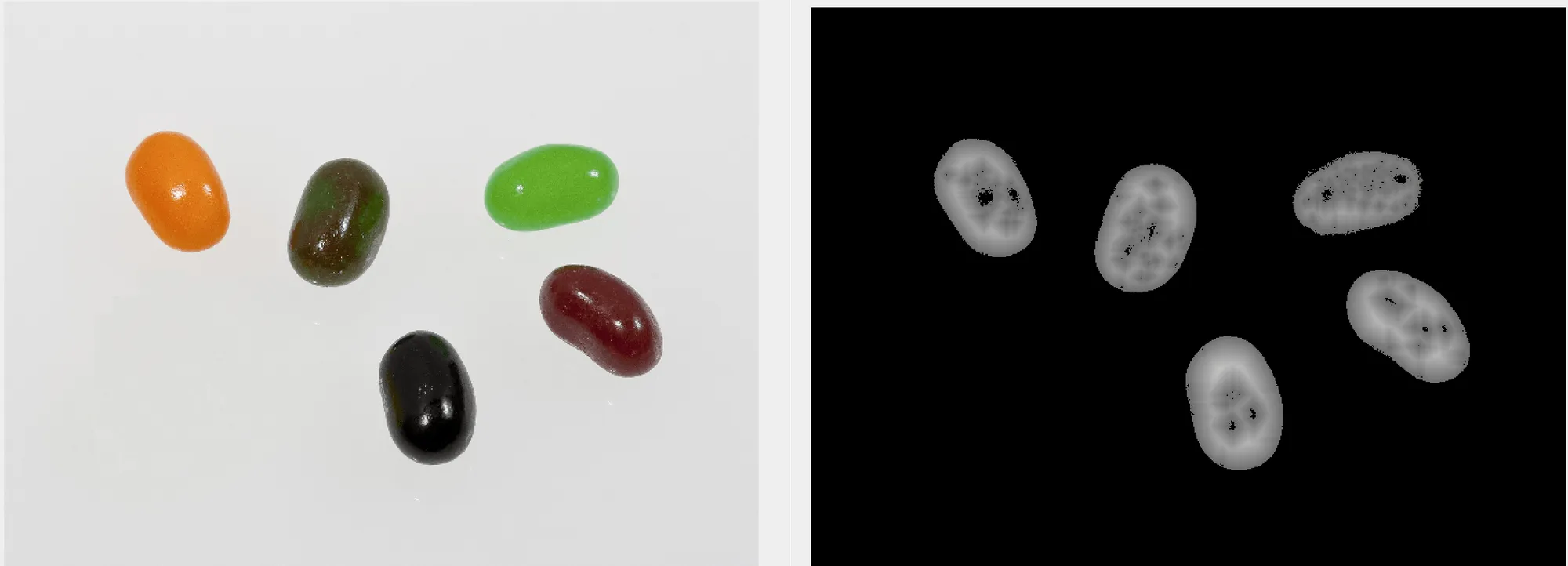

Actually, this generates a funny effect for this picture, I am calling it: The anatomy of a Jelly Bean

Screenshot

There are also other methods that achieve this step; they can be found here: http://www.ijsce.org/wp-../uploads/papers/v4i1/A2060034114.pdf

Watershed Algorithm

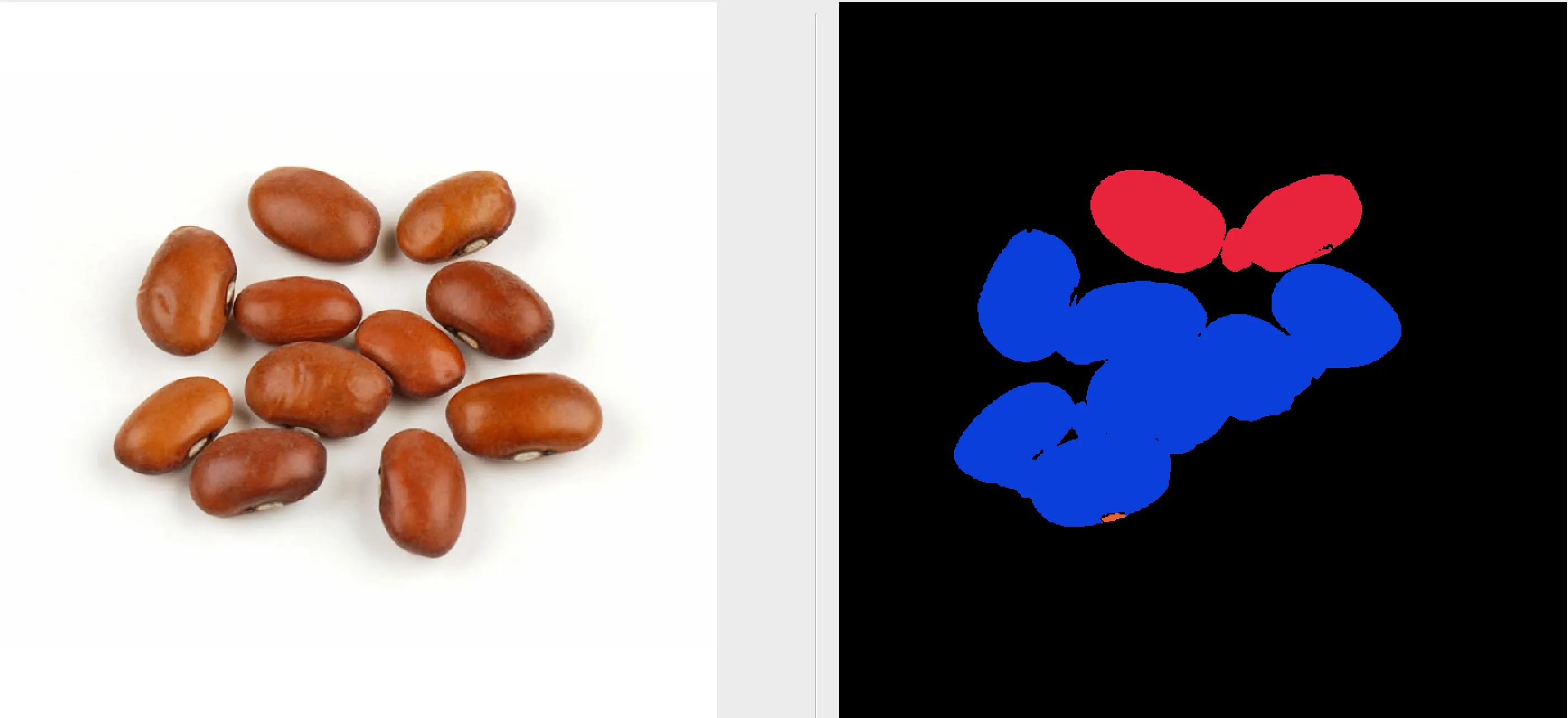

Screenshot

One last step before applying the watershed algorithm is to find the markers from where the flooding will begin; too many markers, and the result will be over-segmented; too few, and some regions will be missed.

My approach was to take the foreground points that are the furthest from the background, and start the flooding from there.

After that, just start the flooding process, and remember to create a wall (of empty pixels) between two adjacent flooding regions.

WaterShed logic:

  1. A set of markers, pixels where the flooding shall start, are chosen. Each is given a different label.
  2. The neighboring pixels of each marked area are inserted into a priority queue with a priority level corresponding to the gradient magnitude of the pixel.
  3. The pixel with the lowest priority level is extracted from the priority queue. If the neighbors of the extracted pixel that have already been labeled all have the same label, then the pixel is labeled with their label. All non-marked neighbors that are not yet in the priority queue are put into the priority queue.
  4. Redo step 3 until the priority queue is empty.

The non-labeled pixels are the watershed lines.

// Do the watershed
while (!pq.empty()) {
  Pixel top = pq.top();
  pq.pop();

  bool canLabel = true;
  int neighboursLabel = 0;
  for (int i = 0; i < 4; i++) {
    int nextX = top.x + dx[i];
    int nextY = top.y + dy[i];
    if (nextX < 0 || nextY < 0 || nextX >= image.rows || nextY >= image.cols) {
      continue;
    }
    Pixel next = Pixel((int)image.at<uchar>(nextX, nextY), nextX, nextY);

    // Must check if all surrounding marked have the same color
    if (markerMap[next.x][next.y] != 0 && next.val != 0) {
      if (neighboursLabel == 0) {
        neighboursLabel = markerMap[next.x][next.y];
      }
      else {
        if (markerMap[next.x][next.y] != neighboursLabel) {
          canLabel = false;
        }
      }
    }
    else {
      if (inPq[nextX][nextY] == false) {
        inPq[next.x][next.y] = true;
        pq.push(next);
      }
    }
  }

  if (canLabel) {
    markerMap[top.x][top.y] = neighboursLabel;
  }
}

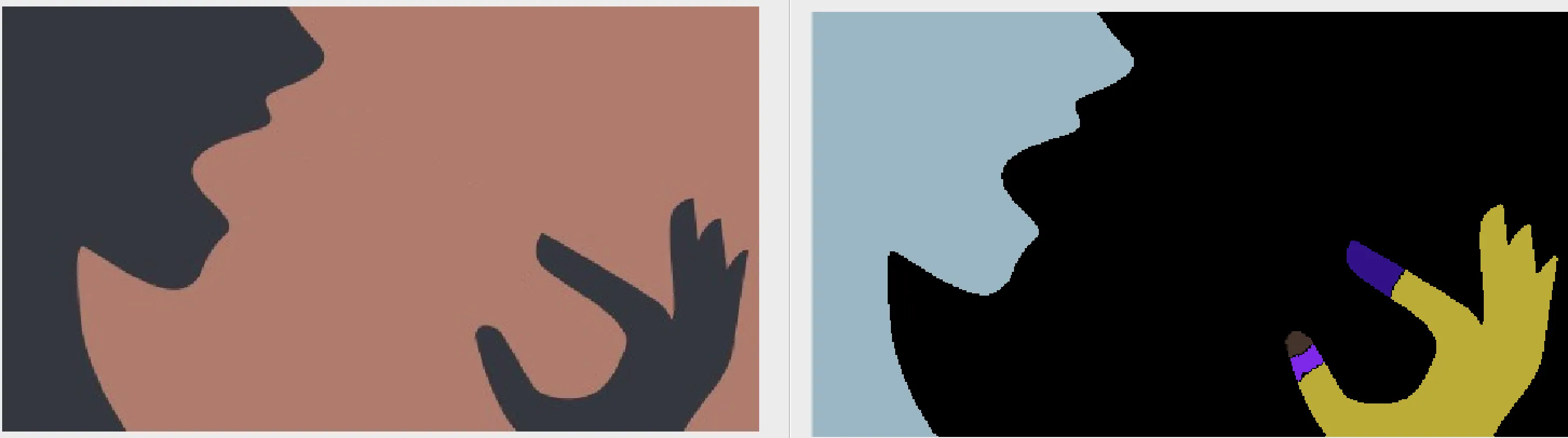

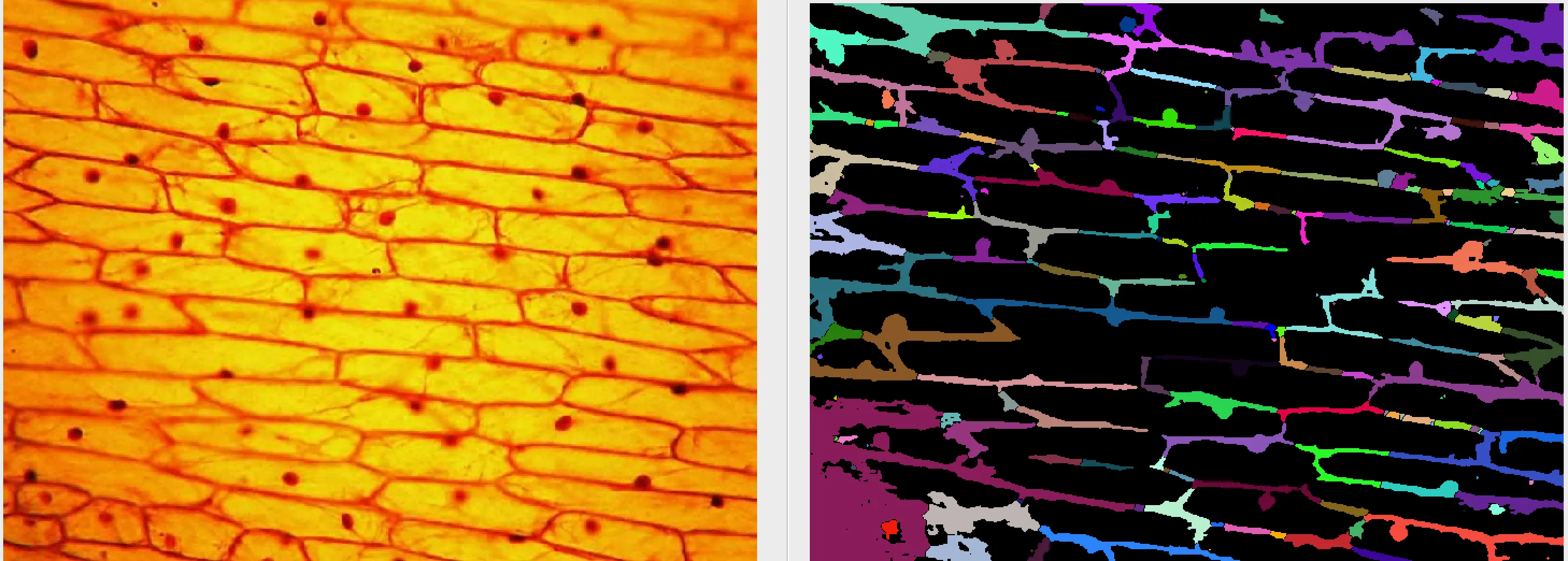

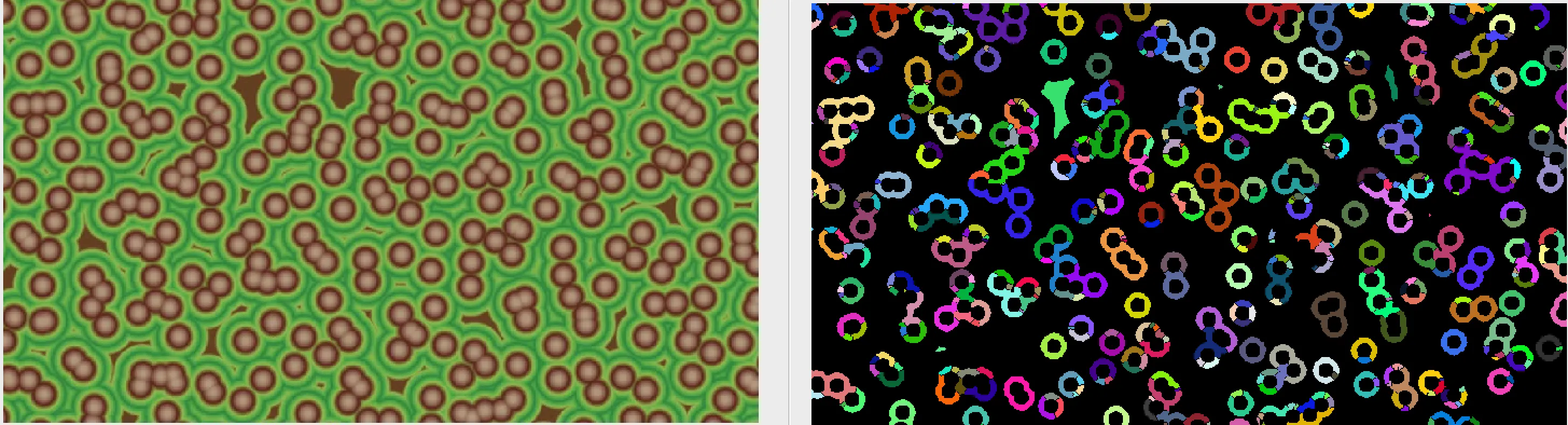

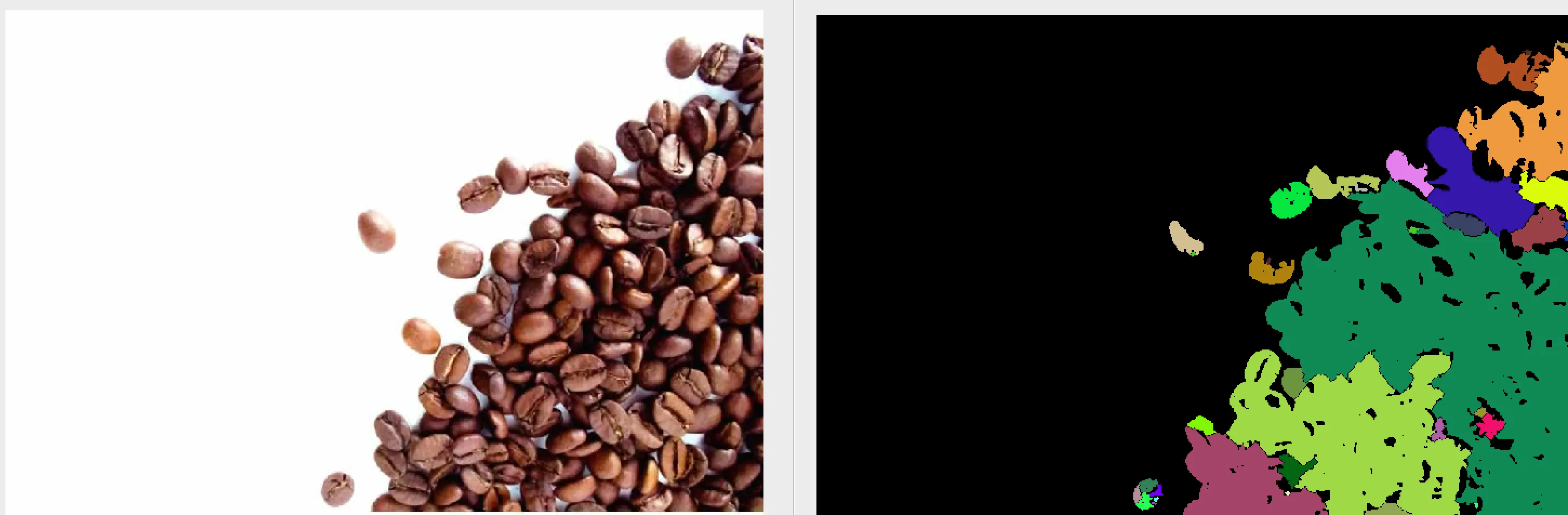

Other results:

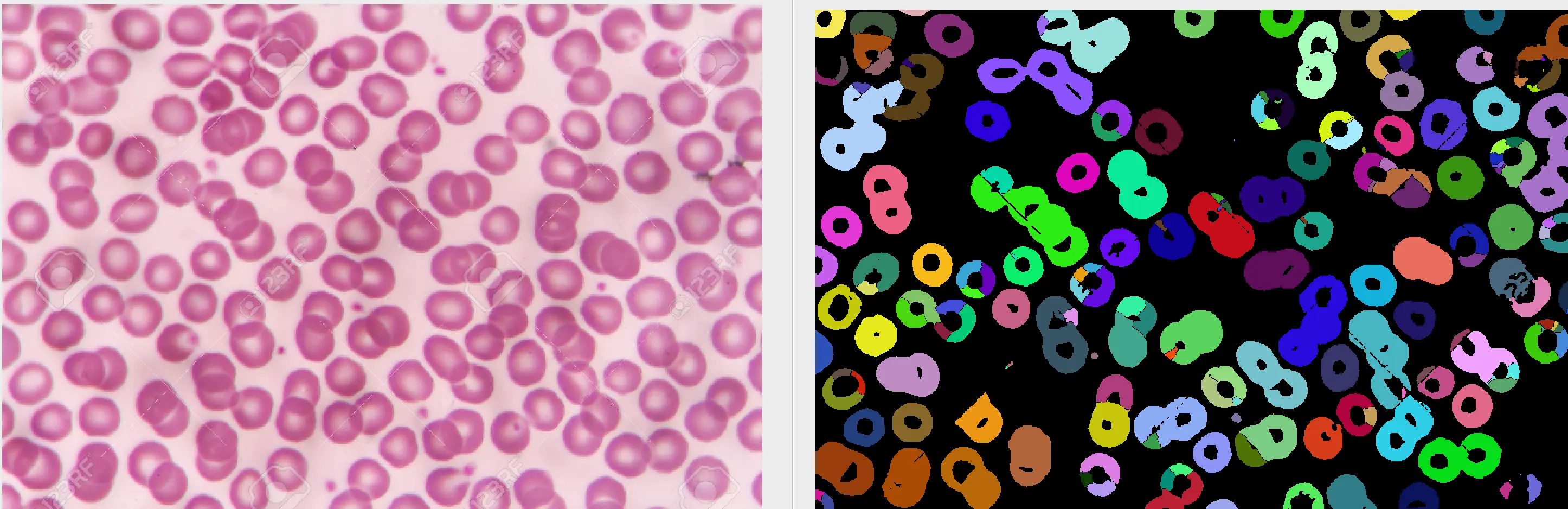

Other Result 1 Other Result 2 Other Result 3 Other Result 4 Other Result 5

Code

GitHub Code
